VLEDS: LP-X Reverse Light Bar
VLEDS: LP-X Reverse Light Bar

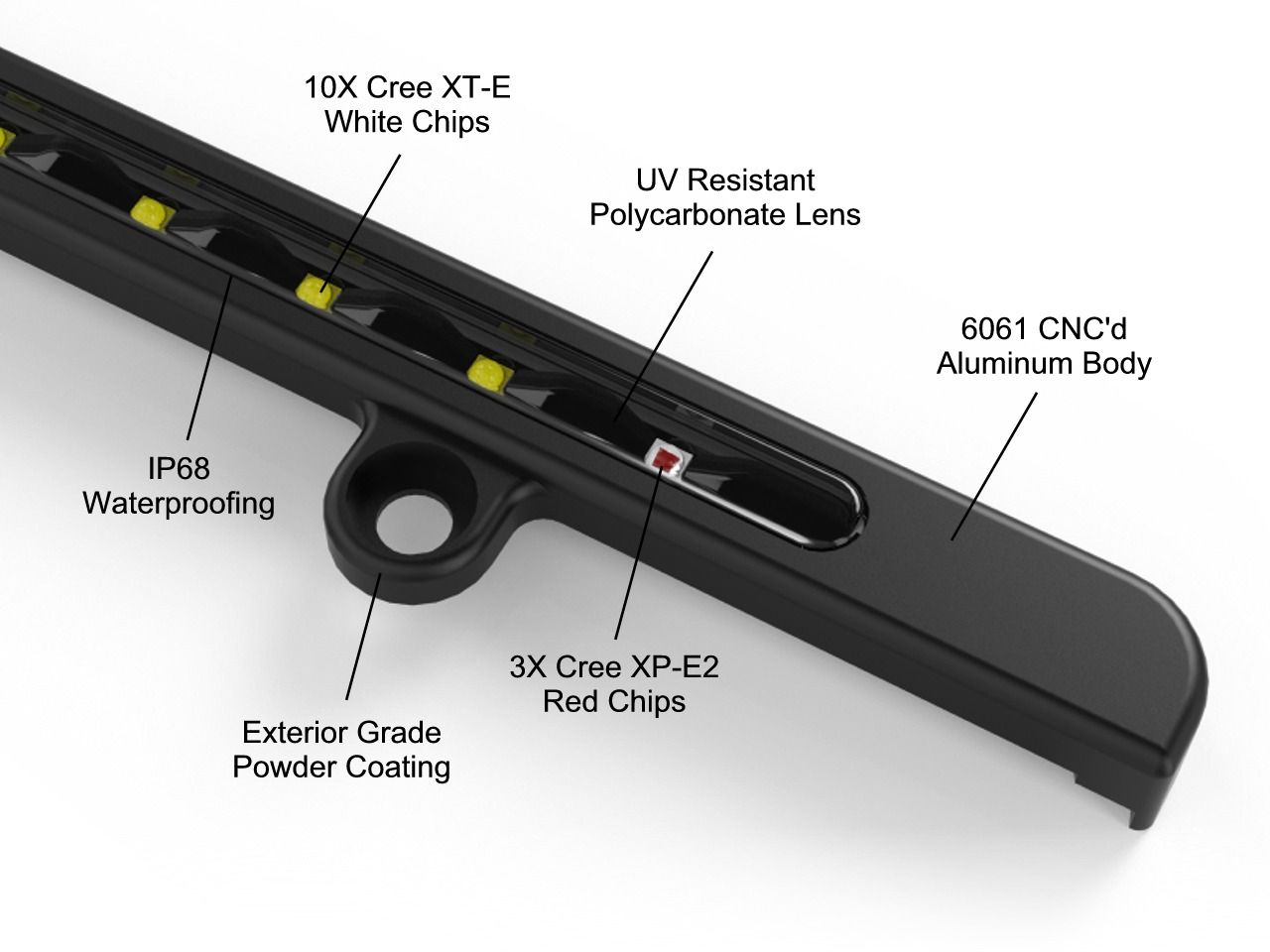

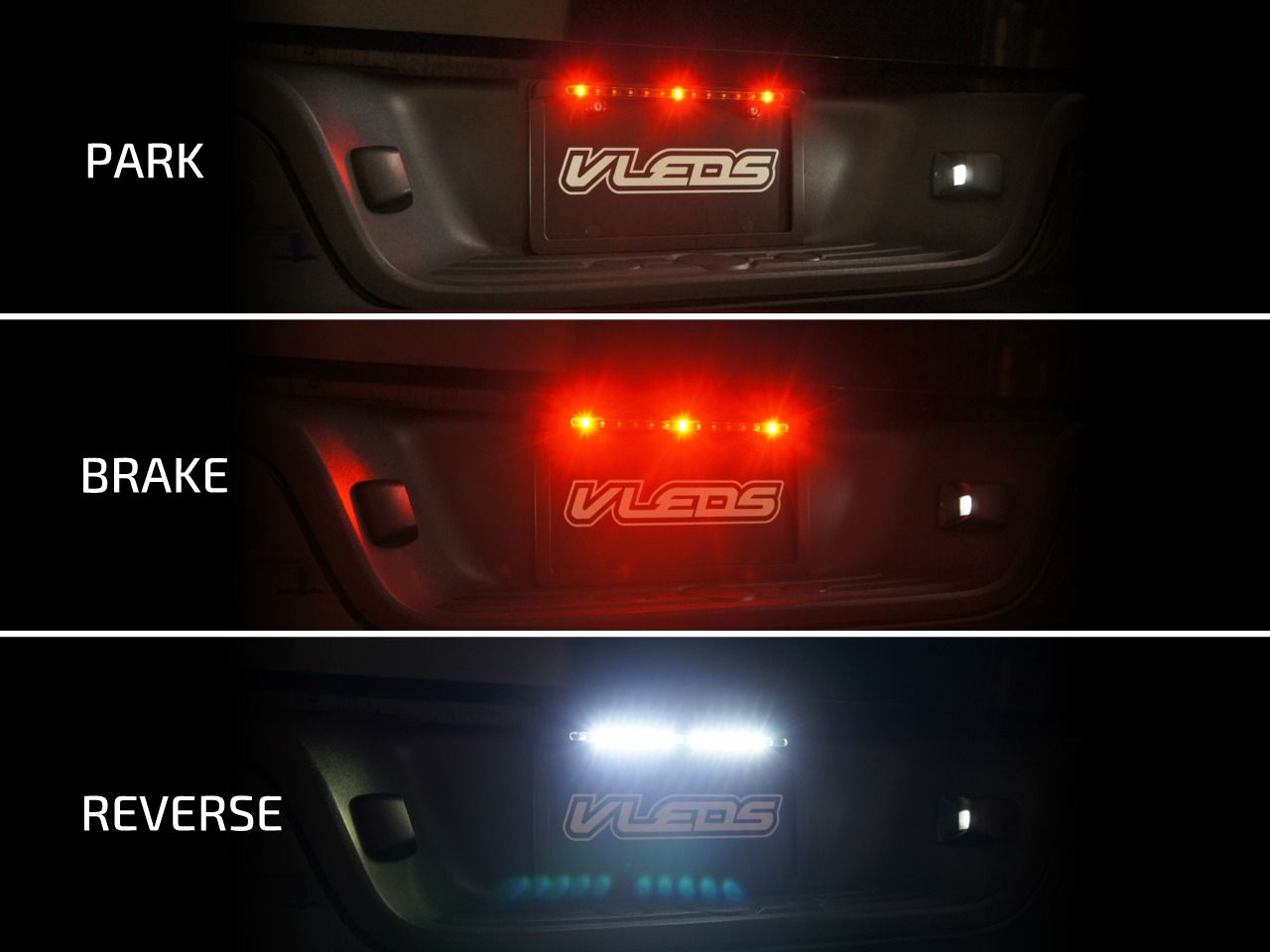

LP-X MULTI FUNCTION Add safety and visibility with the all-new LP-X! We incorporated three functions into one system, park, brake, and reverse. With its three red XP-E2 Cree chips, you'll get a unique parking/marker light and additional brake light. The ten White XT-E chips provide an additional 2000LM of light when reversing.
THE ORIGINAL We are the original inventor of the License Plate Reverse Light System. It was created directly and personally by the owner of VLEDS, not a copy or imitation. Our first version, the LPF, was released over a decade ago. The LP-X is our latest model. We spend years developing our products, unlike knock-off brands. When you buy from us, you're getting the real deal!
APPLICATION NOTE:

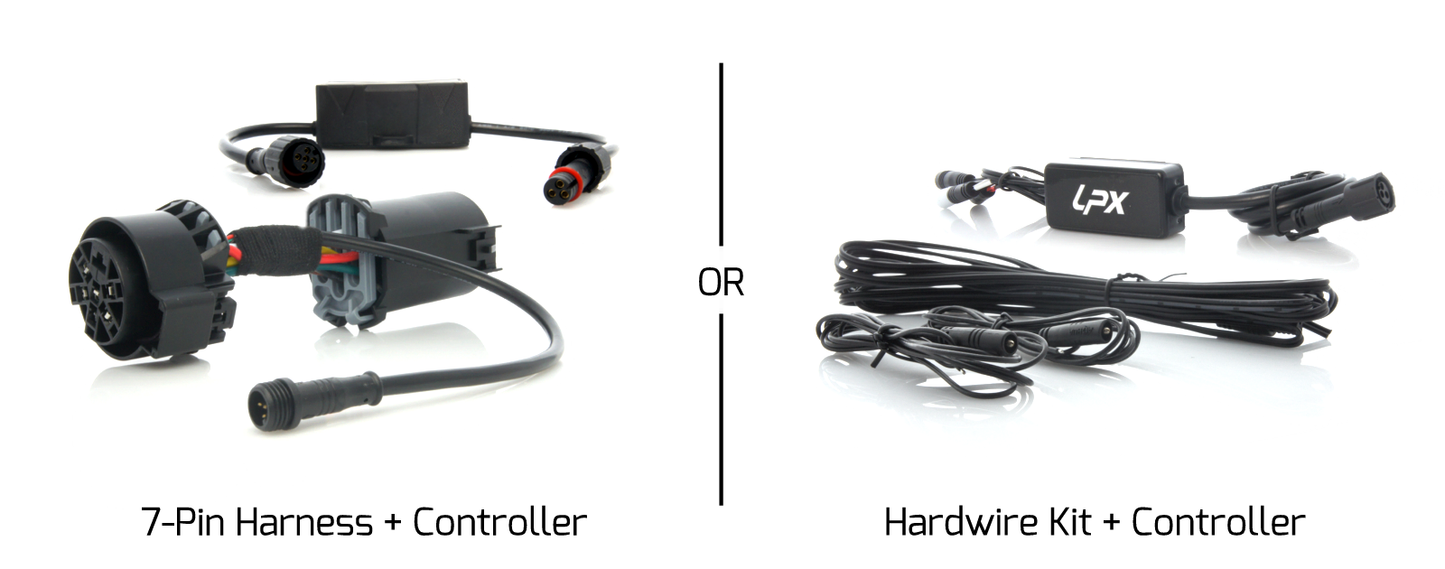

- If your truck uses the brake light as a turn signal or has factory LED reverse lights, you must select the 7-pin harness installation method.
- Vehicles with CAN bus or Body Control Modules, we recommend installing our LED bulbs to lower the overall current draw on the circuit. You will add nearly 2A, and some systems will fault from the additional load.
7-PIN NOT COMPATIBLE WITH:
- Toyota: 2005-2015 Tacoma
- Chevy: Tow Assist, Advanced Trailering System
- GMC: Tow Assist, Smart Trailer
- Cadillac: Smart Towing, Hitch Guidance
- RAM: Trailer Sway Damping, Trailer Reverse Steering Control (TRSC)
- Ford: Pro Trailer Backup Assist, Trailer Sway Control, and Hitch Assist
- Lincoln: Trailer Sway Control, Smart Trailer Tow, Pro Trailer Backup Assist, and Trailer Reverse Guidance
FITMENT NOTE:
- 2019+ RAM 1500: May require additional adjustments to clear the tailgate.
