VLEDS: LP Reverse Light System

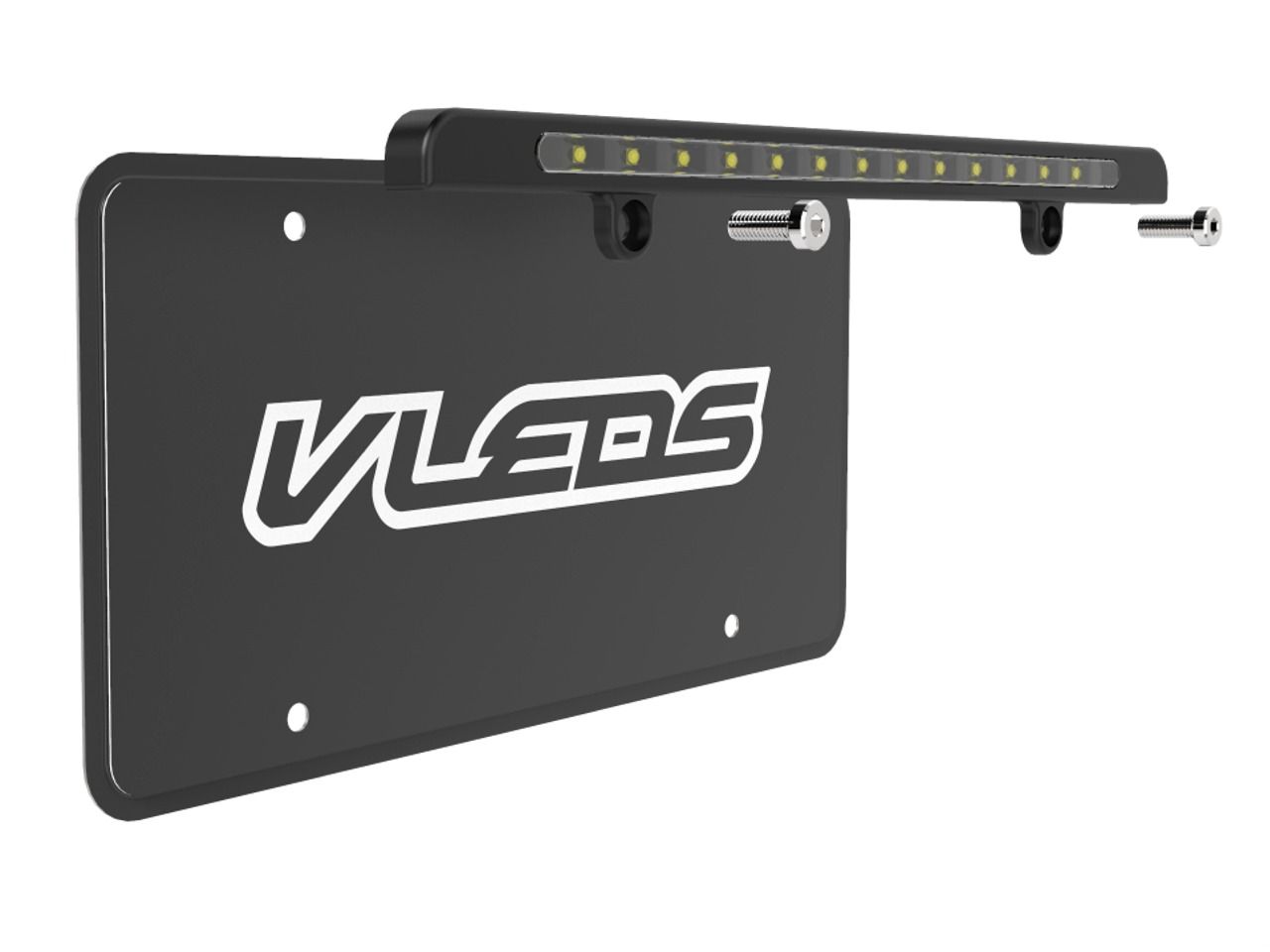

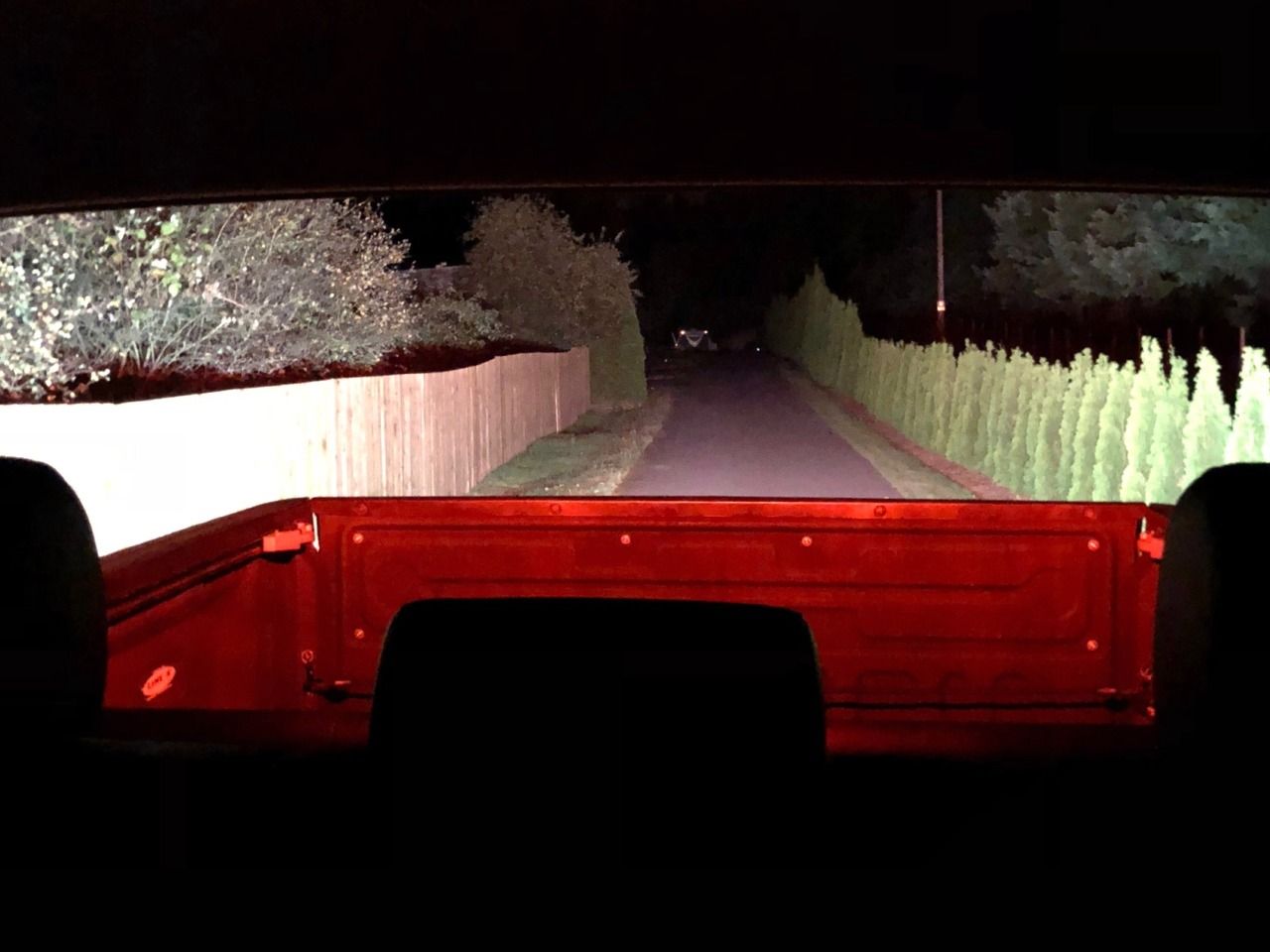

License Plate Reverse Most factory reverse lights are terrible, only an indicator to others that you are backing up. So we created the perfect add-on solution, the LP-Reverse Light System. Made of 6061 CNC'd aluminum with an exterior grade anodized satin finish. The LPR uses 72 high output 5500K LEDs producing 1800LM to light up the world behind you!
Designed and Developed We are the original inventor of the License Plate Reverse Light System. Our first version, the LPF was released back in 2010. The LPR is our latest model. We spent years developing the LPR, unlike the knock-off brands. When you buy from us you're getting the real deal!

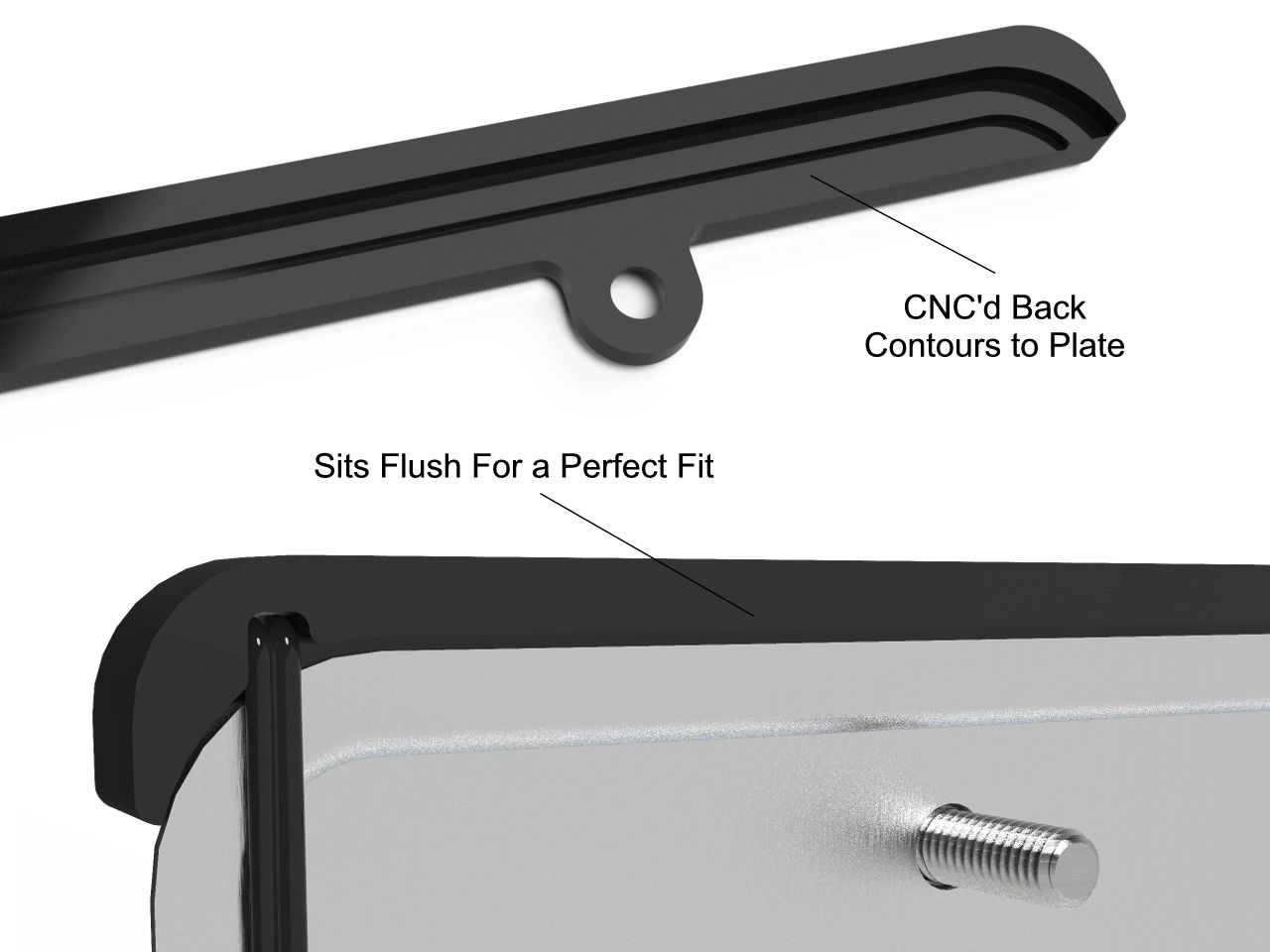

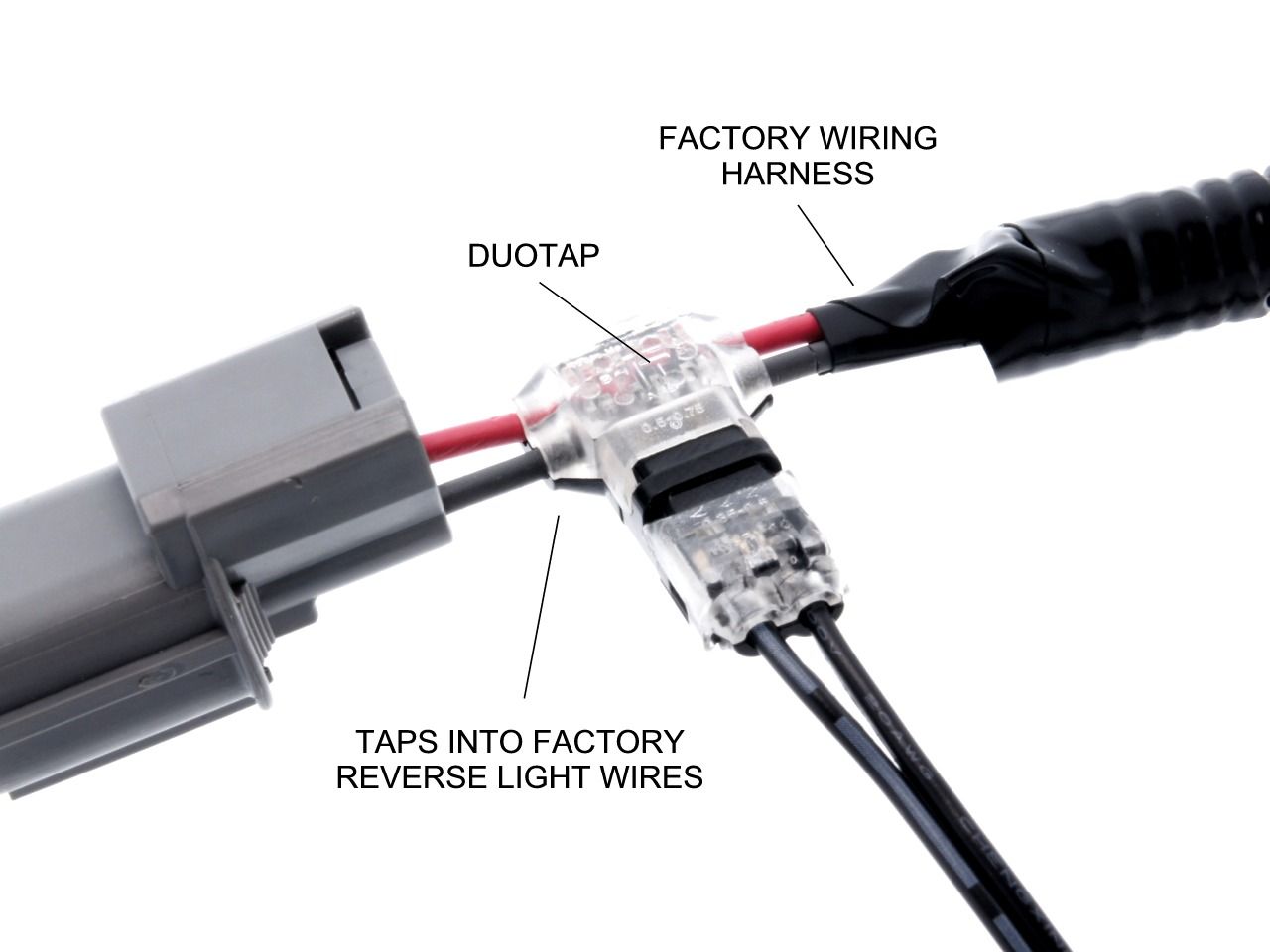

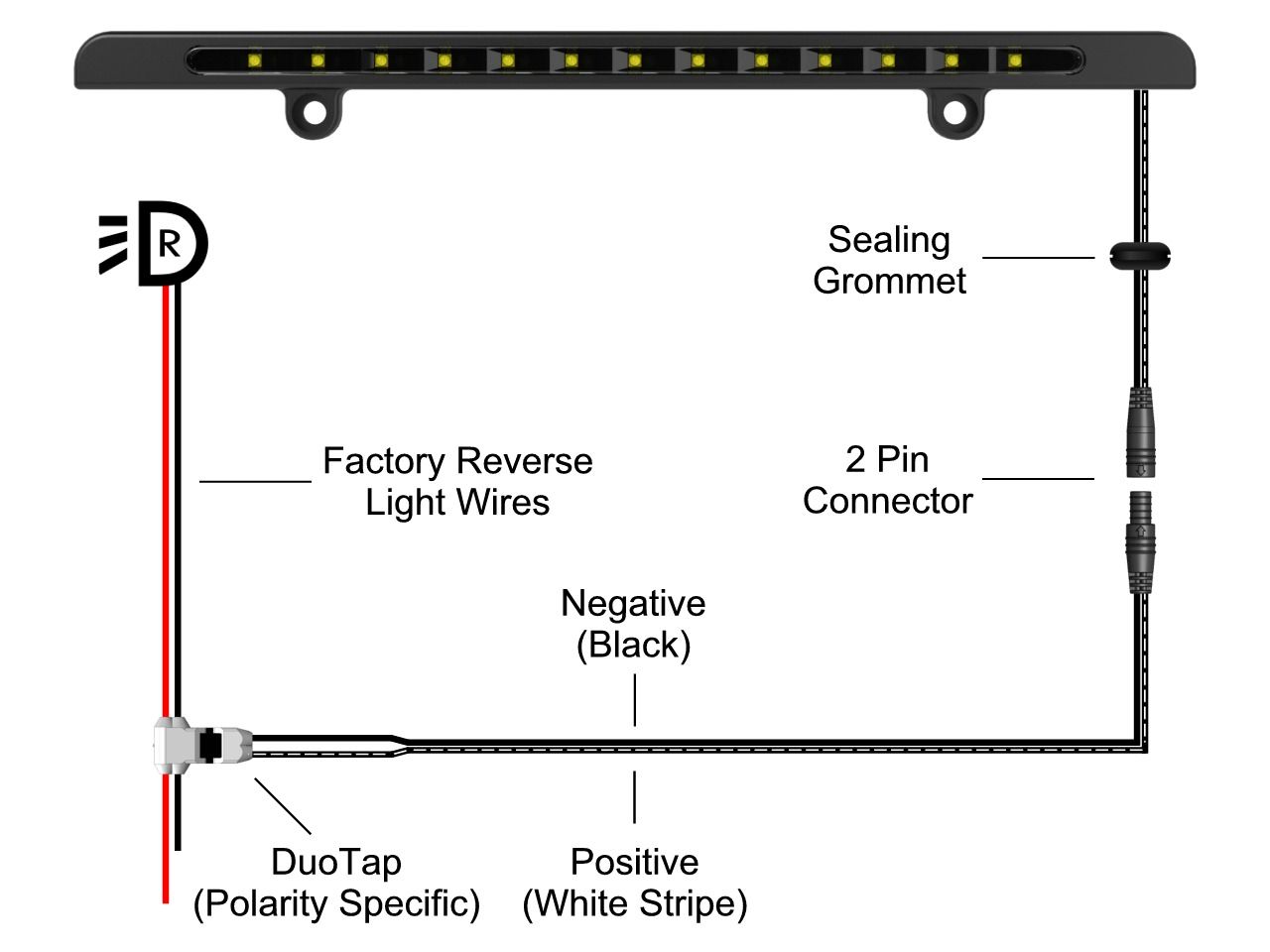

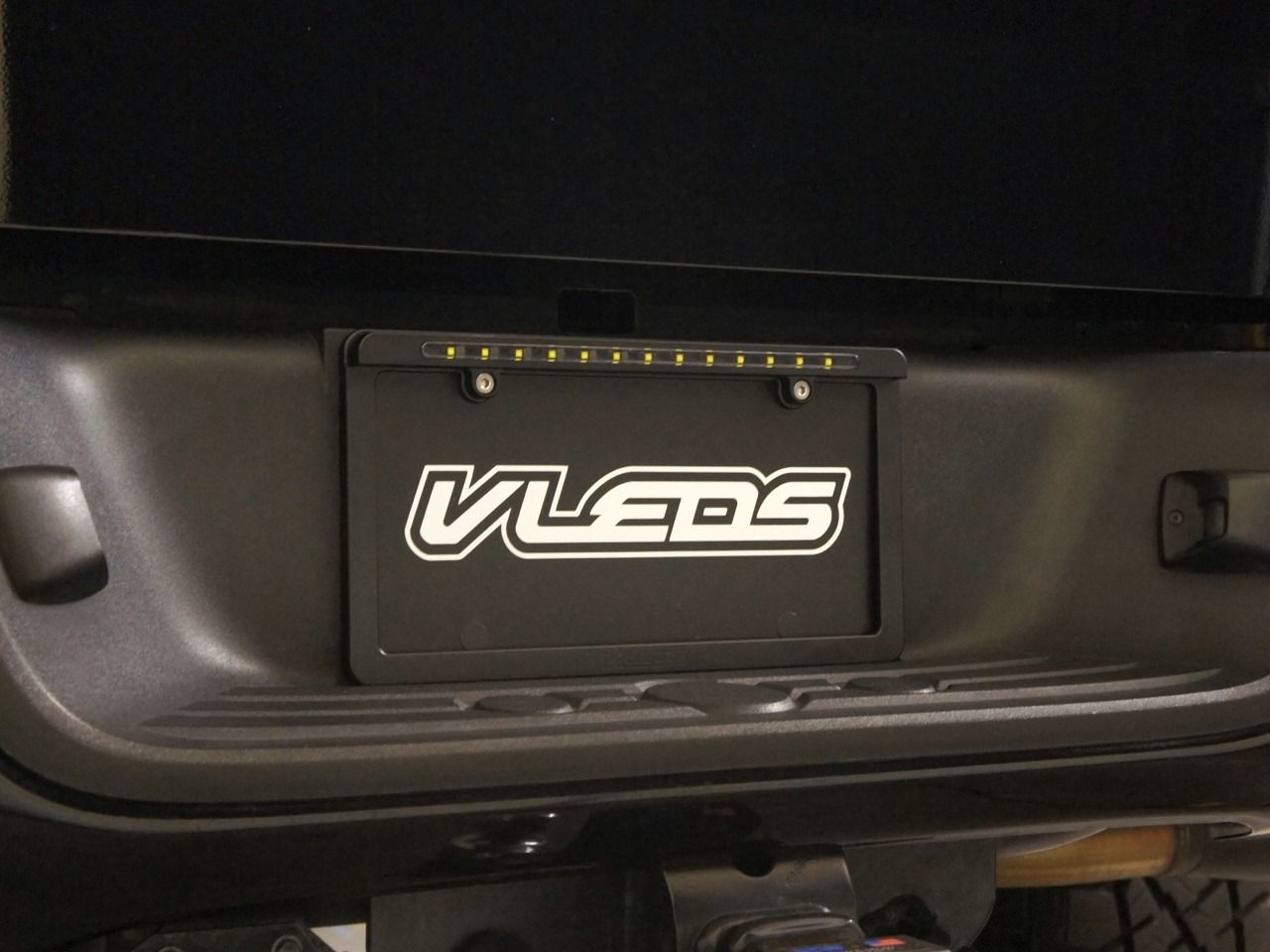

Simple Installation Tap into your back up light bulb wires, fasten the bar over your license plate and you're done!

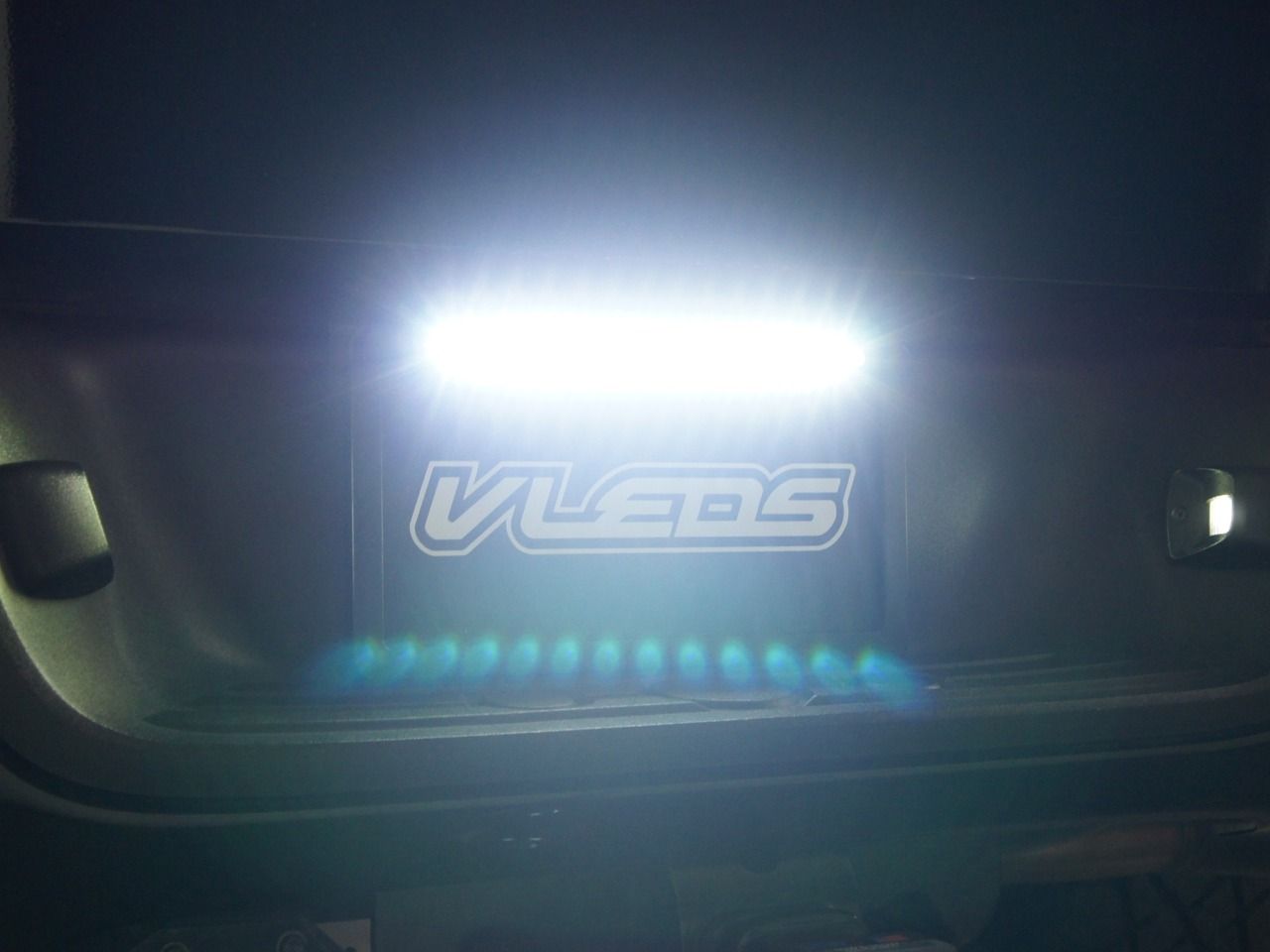

Safety Added Provide yourself and others around you with more light to see and be seen by. This Reverse Light System is brighter than any other LED replacement bulb we sell! Enjoy the simplest and brightest LED back-up system on the market... guarantee you'll love it!
NOTE: For newer trucks with CAN bus or Body Control Modules, we recommend installing our LED bulbs to lower the overall current draw on the circuit. Keep in mind you will be adding nearly 2A and some systems will fault from the additional load. For these types of systems including trucks equipped with factory LED reverse lights you can wire the LPR into the back of the trailer harness or install our LP Relay Kit.
FITMENT NOTE: Does not fit 2019+ RAM 1500 with Multifunction Tailgate.

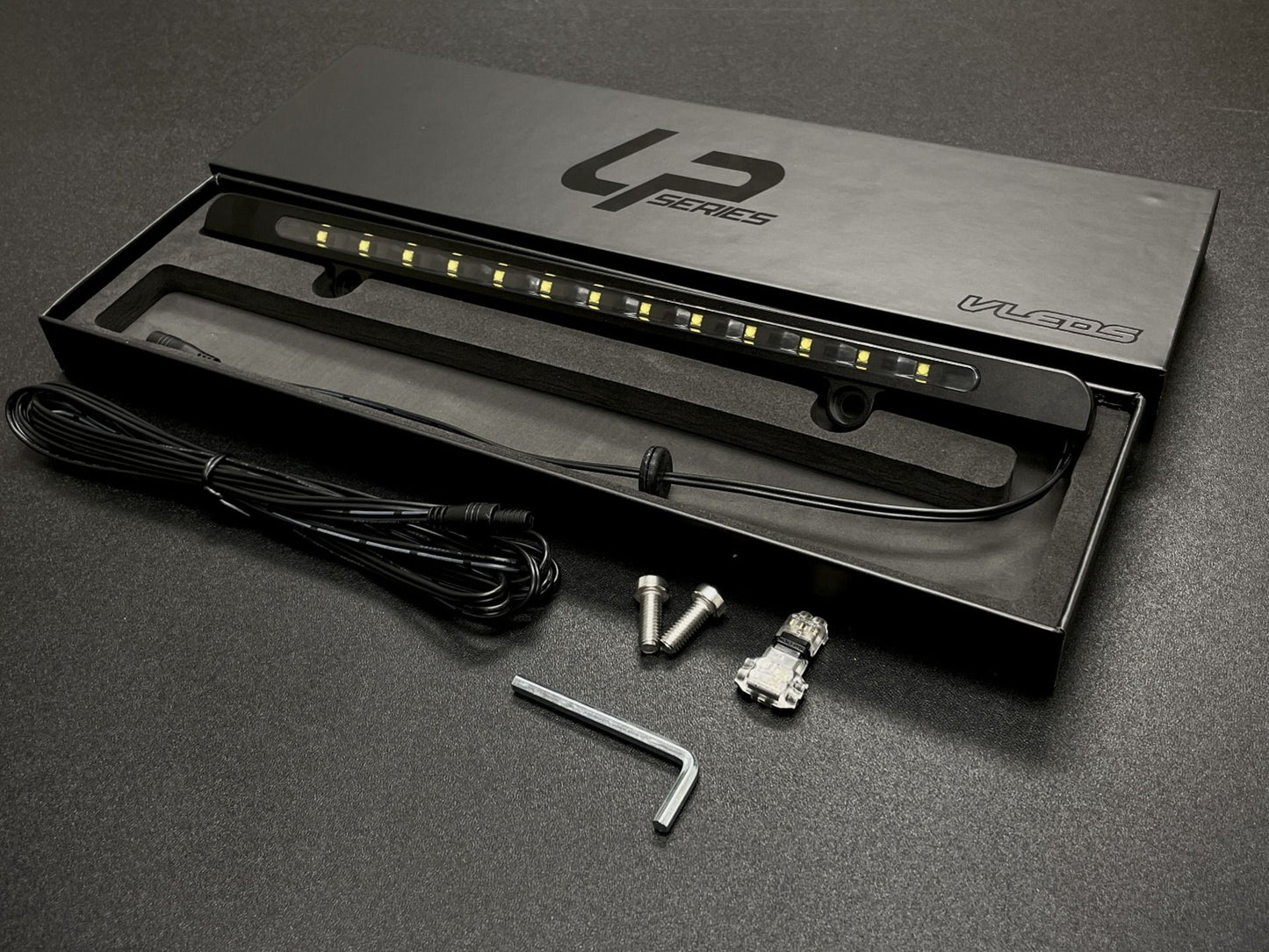

What's Included
1x LP-Reverse Module
2x M6x1.0 18mm 304 Stainless Steel Cap Screws
1x Allen Key
1x DUO_TAP Splice Tap
1x 10 Foot Extension Wire
3x Small Zip Ties

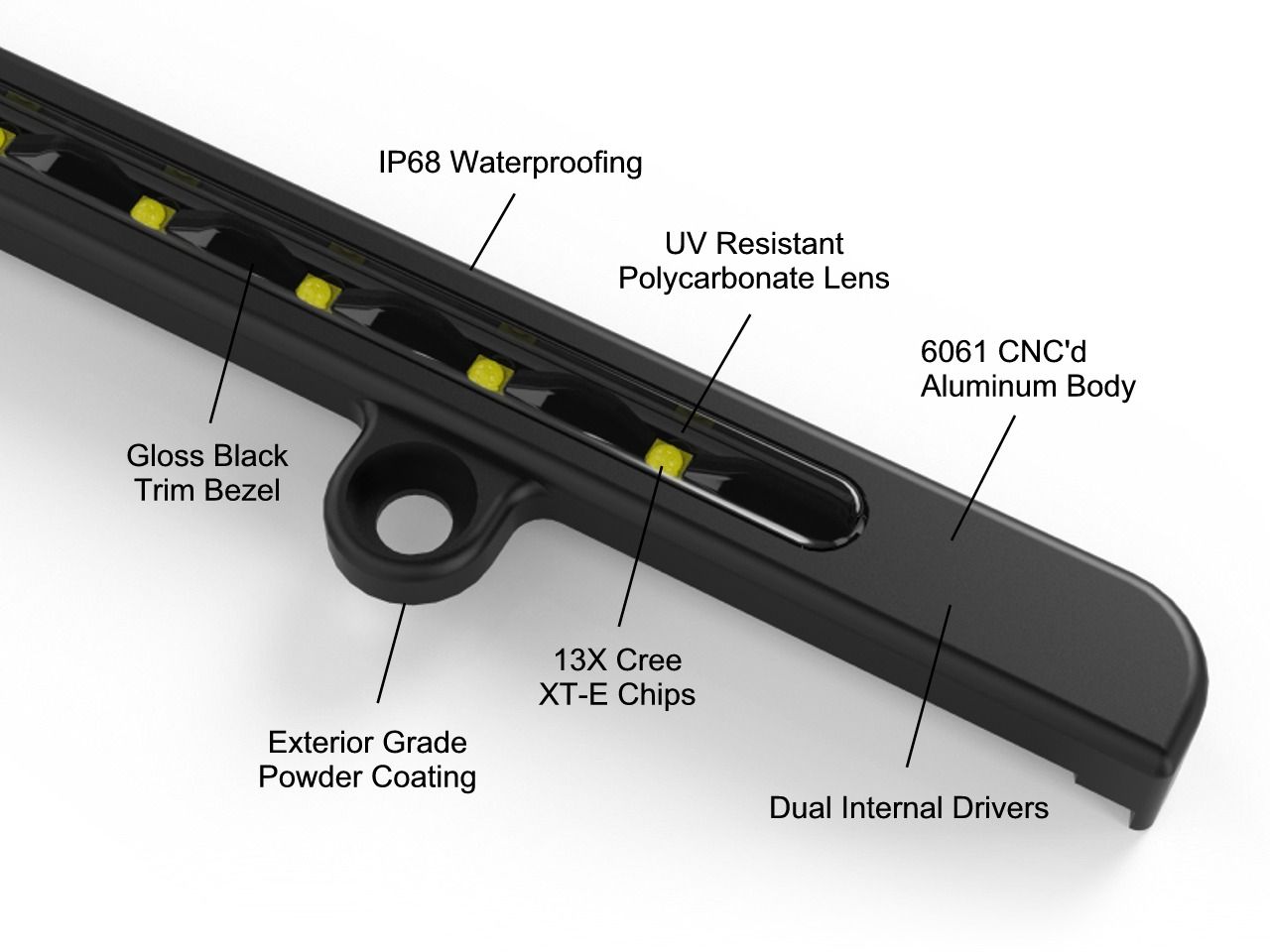

Key Features
Output | 1800lm measured output (5X brighter than a standard reverse light) |
Lens | UV resistant polycarbonate |
Waterproof | Potted and sealed for IP68 rating |
Material | All aluminum CNC machined construction |
Finish | Satin black exterior grade anodized |

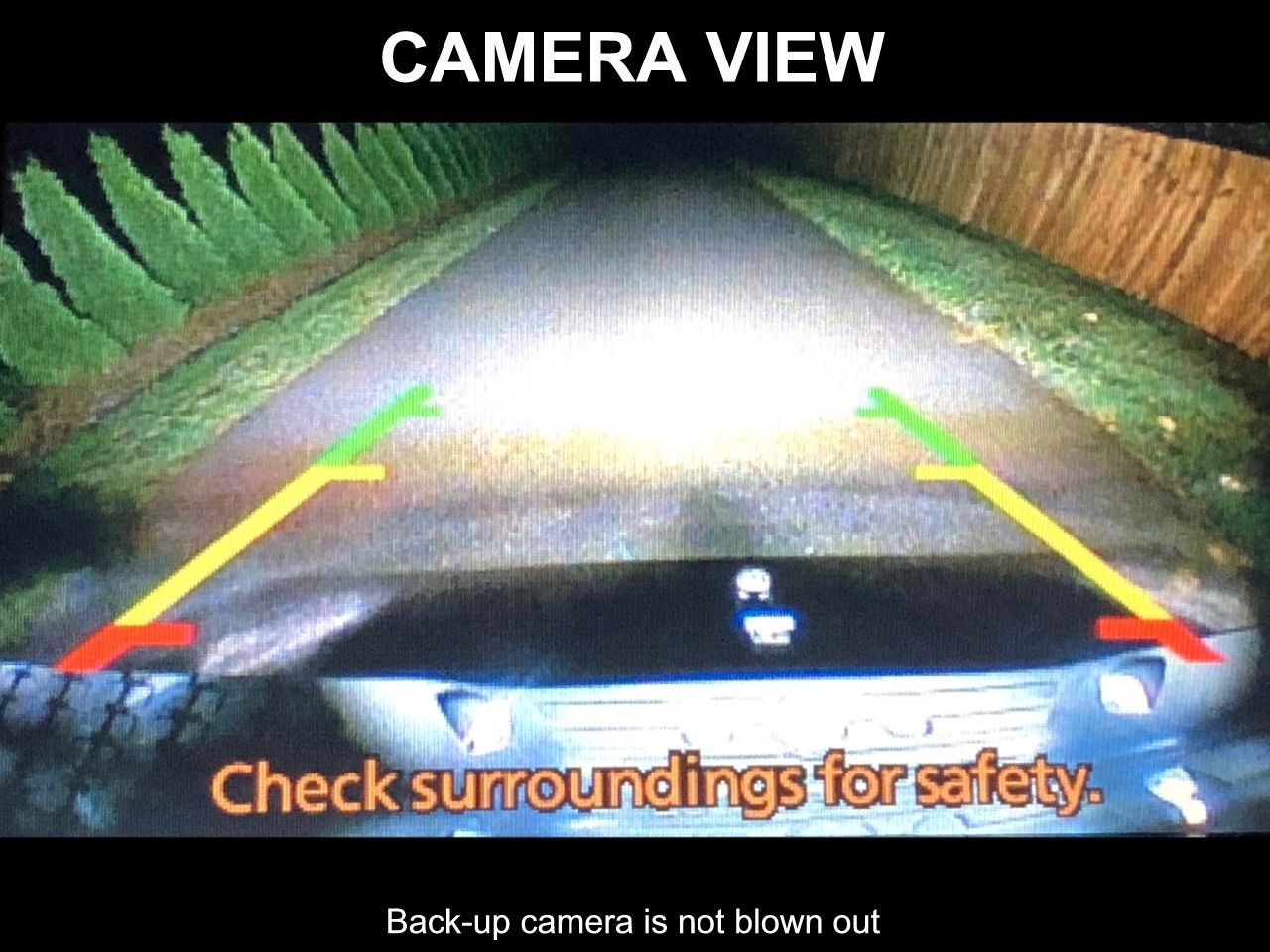

Camera | Enhances back-up camera and does not blow out the feed |
Connector | 2 pin waterproof plug with grommet and 10ft extension wire |
Specifications
OUTPUT | 1800LM |
---|---|
CURRENT DRAW @ 14.4V | 1.8A |
OPERATING VOLTAGE | 12-18V |
LIGHT SOURCE | 2835 Proprietary Chip |
CHIP QUANTITY | 72 |
DRIVER STYLE | Constant Current |

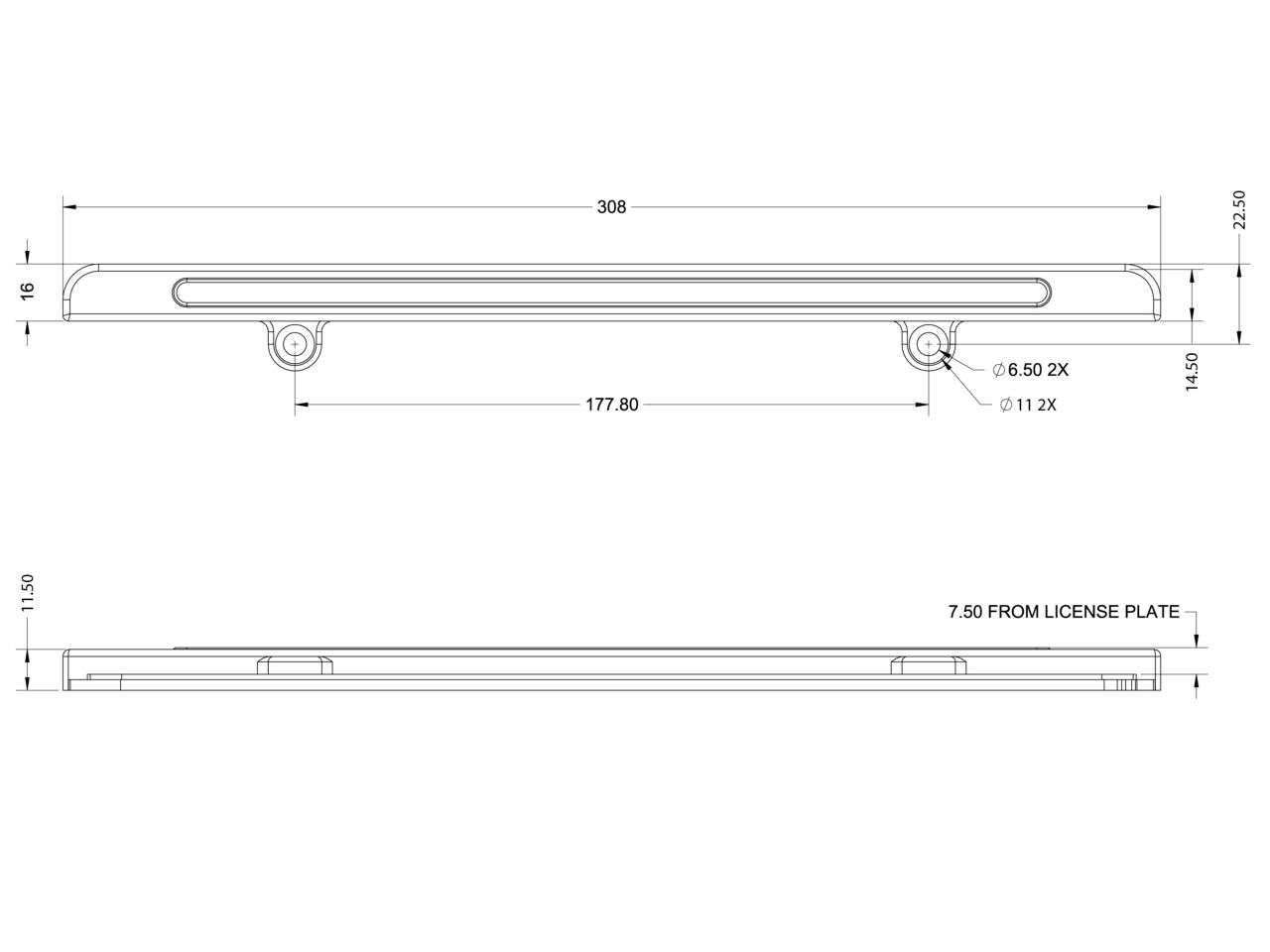

DIMENSIONS | See Drawing |
CONTACT MATERIAL | Gold Plated |
COLOR TEMP | 5500K PURE WHITE |
