Morimoto H1 8.0 Retrofit Kit

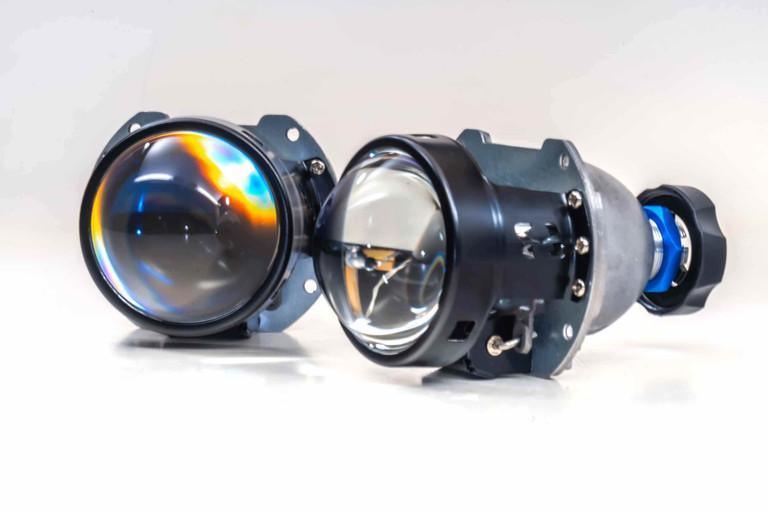

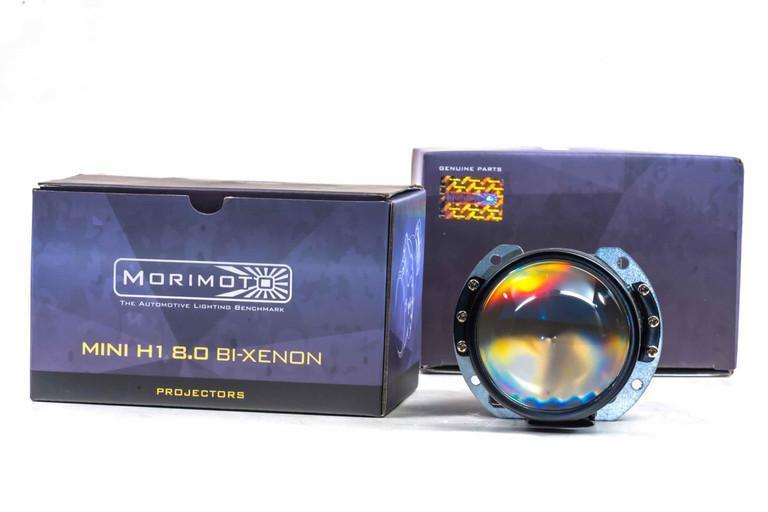

MORIMOTO BI-XENON PROJECTORS: Morimoto's new Mini H1 8.0s represent the grand finale in the series of "Mini H1" Projectors - representing what we believe to be most advanced H1 headlight projectors in the world today. Revised optics paired with a cast-curved cutoff shield produces one of the widest beam patterns we've ever seen. AR-Coated Optically clear lenses maximize intensity throughout, and keep the ECE-slope cutoff line sharp, colorful, and attractive. The standard MotoHo1der bulb holders are so much more precise than the old crappy spring-loaded units. Result: Maximum light on the ground, zero glare to oncoming traffic.

SHROUDS: Basically, they're the trim piece that adds the finishing touch to your new fog light retrofit. They cover the projector after it's installed to restore the factory-finished look inside the housings. With so many different shapes, sizes, and designs available, we really recommend picking one that suits the geometry inside of your fog lights, and also your personal preference on how they look. Check out all of the projector shroud options we offer and take your pick!

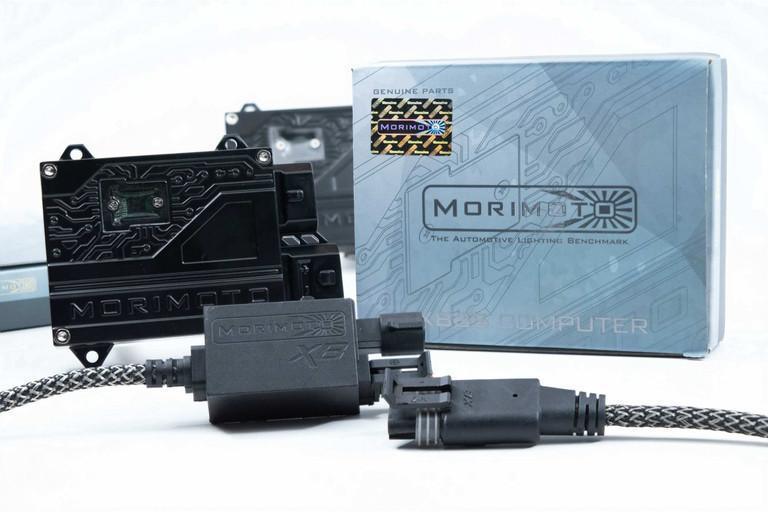

HID BALLASTS: Designed in California by Morimoto's engineer, Yoshi Ishida, the Morimoto XB 2.0 HID Ballasts are just as good looking on the outside as they are well-engineered on the inside. They are available in both 35w and 50w versions, use proprietary software by the pros at Hylux paired with packaging perfection from the masters at Morimoto. This is today's most modern iteration of a model that has sold more than half a million units since inception, and we don't think it can really get any better!

H1 HID BULBS: Homegrown by Morimoto to out-perform any alternatives on the market when installed in projector-based fog lights--and it shows. We admit the latest generation XB HID bulbs are pretty impressive when compared to other bulbs, and even older Morimoto bulbs. At the heart of the XB bulbs is their perfectly-aligned 100% Philips quartz glass capsule that houses high quality halide salts from German-supplier Messer. In our annual lux comparison test, they produced nearly the same luminosity (intensity) as the industry benchmark Osram CBI bulbs at 5500K. No, you're not seeing things here, but yes you will be seeing everything at night.

WIRE HARNESS: As one of the most important parts in any HID lighting upgrade; don't skimp out when it comes to your wiring. It doesn't matter how good your ballasts are. How good your bulbs are. If your harness is a piece of crap, when it gives out your lights are gonzo. Morimoto's harnesses are the best on the market and easily worth their premium price compared to cheaper alternatives. No matter which one is right for your application, the harness features triple-sealed central relay packs, 14ga stranded copper wiring, over-molded fittings, and plug-n-play functionality. This will ensure everything properly (and permanently) works with your vehicle's original in-cabin controls.

PRECISION BULB HOLDERS: Designed by Morimoto in California, the new MotoHo1der utilizes a three-piece design that's way more effective but virtually no bigger overall than the old clip setup. The clever three-piece design provides even pressure on the back of the bulb, ensuring perfect alignment. To be honest, we think it's the single best upgrade to the projector that's ever been conceived since it helps make the most of the awesome 7.0's on the road. Well worth the extra few bucks in the grand scheme of things!

OPTIONAL CANBUS HARNESSES: Instead of a traditional relayed harness that draws power from the battery, Morimoto's Standalone Canbus harnesses use two individual sub-harnesses to keep a load on the factory wiring. Recommended for vehicles that recognize when a bulb is out, these contain a series of capacitors and resistors to trick the car into thinking nothing has changed and help you avoid annoying "bulb out" warnings. We generally recommend them for use on most modern European applications instead of normal harnesses since they do a great job at providing stable power to the ballasts and canceling bulb out warnings.

OPTIONAL LED HALOS: Though LED halos may not be for everybody, if you're looking for the cleanest, most simple, most reliable setup, we highly recommend the Profile Performance Pivot Halos. Not only are they the brightest, most uniformly lit halos currently on the market, but they double as a switchback turn signal with your blinker circuit. The integrated controllers are extremely easy to setup with only three wires (white, amber, and ground) and allow you to run the white mode continuously until interrupted by the signal--at which point they will blink amber. Once the signal stops, the Pivot ring will automatically switch back to its pure white mode.

OPTIONAL HOUSING SEALANT: Protection is priceless! When you're putting together a set of high-end fog lights, the last thing you want is moisture in 'em the first time it rains outside. RetroRubber is the most effective way to make sure the original seal is fully restored. For the small price, why anybody wouldn't prevent their new fog lights from fogging up is beyond us. It'll be the best twelve bucks you've ever spent.

What's Included

PROJECTORS:2x Morimoto Mini H1 8.0
SHROUDS:2x Your Preference
HID BALLASTS:2x Morimoto XB35 AMP
H1 HID BULBS:2x Morimoto XB
WIRE HARNESS:1x Your Preference
WARRANTY:5 Years
PRECISION BULB HOLDERS:Morimoto MotoHo1ders
OPTIONAL HOUSING SEALANT:1x Morimoto RetroRubber
OPTIONAL LED HALOS:2x Profile Pivot

Tech Specs

APPLICATIONS:Universal / Size Allowing
CAPABILITIES:Bi-Xenon
PROJECTOR WIDTH:104mm
PROJECTOR HEIGHT:77mm
PROJECTOR DEPTH:139mm (includes bulb holder)
PROJECTOR LENS:2.5 Inches (diameter)
MOUNTING SHAFT:20mm diameter (H4/H7 direct fit)
MINIMUM HOUSING DEPTH:115mm
WIRE HARNESS:Match your original bulb size
SHROUDS:All styles (centric rings included if req'd)
LED HALOS:Varies according to shroud style
APPLICATION:HID and LED projectors are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE Note: This usage regulation is not unique to Morimoto projectors. All LED and HID projectors from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA. To find street legal LED headlight assemblies, CLICK HERE
HOMOLOGATION ECE:NO
DOT/SAE/FVMSS108:NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)

OPERATING RANGE:-40C to +125C
XB BALLAST INPUT:9-32VDC
XB BALLAST OUTPUT:85VAC 35W
XB BALLAST MAX V:25kV (at start-up)
XB35 BALLAST LIFESPAN:2500 Hours
3000K BULBS:Golden Yellow (~2800 lm)
4300K BULBS:OEM HID Warm White (~3500 lm)
5000K BULBS:Ice White (~3400 lm)
6000K BULBS:Neutral White (~3200 lm)
XB55 50W BALLASTS:Not Compatible
